Dell Optiplex 3070 Micro PC

Processor

Chipset: Intel® B365

Socket: LGA 1151

TPM Support: Firmware TPM 2.0

Supported Processors:

Processor NameDetails
Intel® Core™ i7-9700T8 Cores, 8 Threads, Intel UHD Graphics 630
Intel® Core™ i5-9500T6 Cores, 6 Threads, 35W TDP, Intel UHD Graphics 630
Intel® Core™ i3-9100T4 Cores, 4 Threads, 35W TDP, Intel UHD Graphics 630
Intel® Pentium® Gold G5420T2 Cores, 4MB Cache, Intel UHD Graphics 610
Intel® Celeron® G4930T2 Cores, 2MB Cache, Intel UHD Graphics 610

Memory

Type: DDR4 2666MHz

  • Slots: 2 x SO-DIMM
  • Maximum Capacity: 32GB total (16GB per slot)
  • Upgradeable: Yes

Storage

  • 2.5-inch Drive Bay: 1 x SATA 3 (supports SSD or HDD)
  • M.2 Slot: 1 x M.2 2230/2280 (supports SATA or PCIe NVMe SSD)
  • Upgradeable: Yes

Graphics

Integrated Graphics: Intel UHD Graphics 610 or 630 (depends on processor model)

Dedicated GPU Support: Not supported (Micro Form Factor)

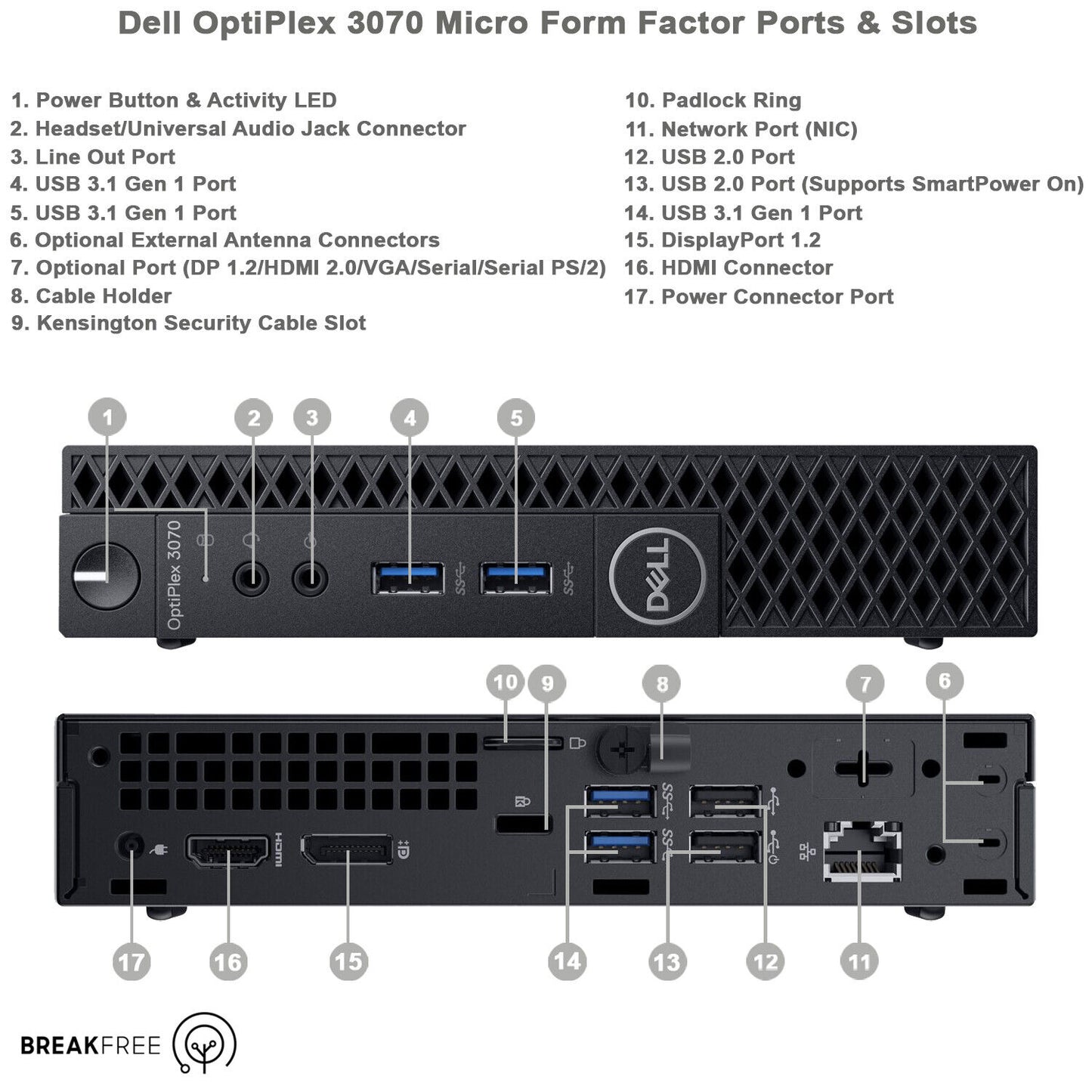

Connectivity & Expansion

TypeDetails
AudioFront: Universal audio jack | Rear: Line-out
Video1 x DisplayPort 1.2 | HDMI 1.4b
Data Transfer4 x USB 3.1 Gen 1 | 2 x USB 2.0
Optional PortsSerial port | Additional video output (HDMI/VGA/DP)

Networking

ModelTypeDetails
Realtek RTL8111HEthernetGigabit Ethernet (10/100/1000 Mbps)
Qualcomm QCA9377Wi-Fi + BluetoothWiFi 5 (802.11ac), Bluetooth 4.2
Intel Wireless-AC 9560Wi-Fi + BluetoothWiFi 5 (802.11ac), Bluetooth 5.0

Power

  • Adapter: External 65W or 90W adapter
  • Input: 100–240V AC, 50–60Hz
  • Output: 19.5V DC, 3.34A (for 65W) or 4.62A (for 90W)
  • Upgradeable: Limited to factory options

Form Factor

Form Factor: Micro Form Factor (MFF)

Micro Form Factor PCs follow Dell's compact desktop standards, designed for space-saving environments.

Dimensions

  • Height: 182.0 mm (7.17 inches)
  • Width: 36.0 mm (1.42 inches)
  • Depth: 178.0 mm (7.01 inches)

Drivers

For official drivers and BIOS updates, please visit: Dell OptiPlex 3070 Micro Drivers
